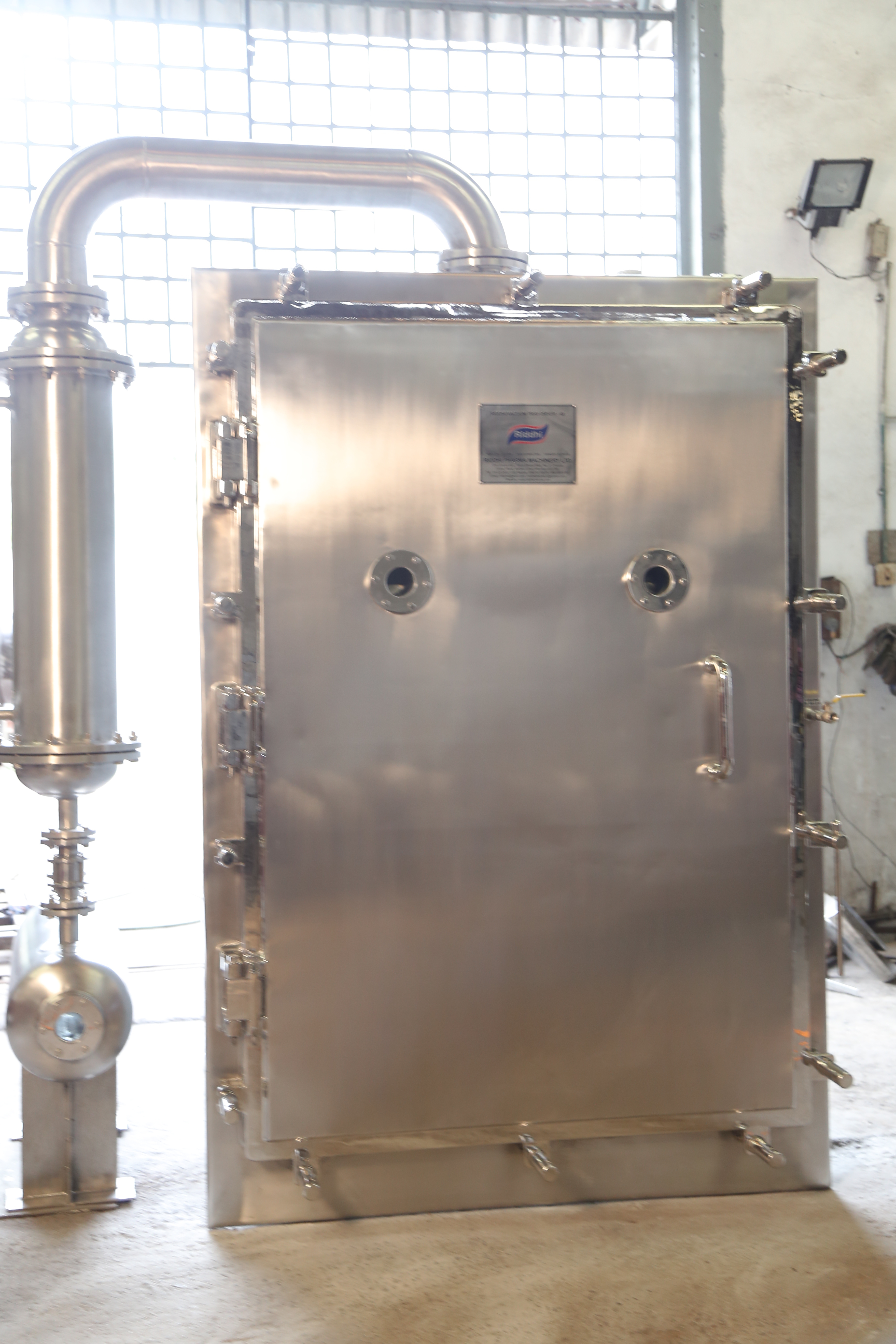

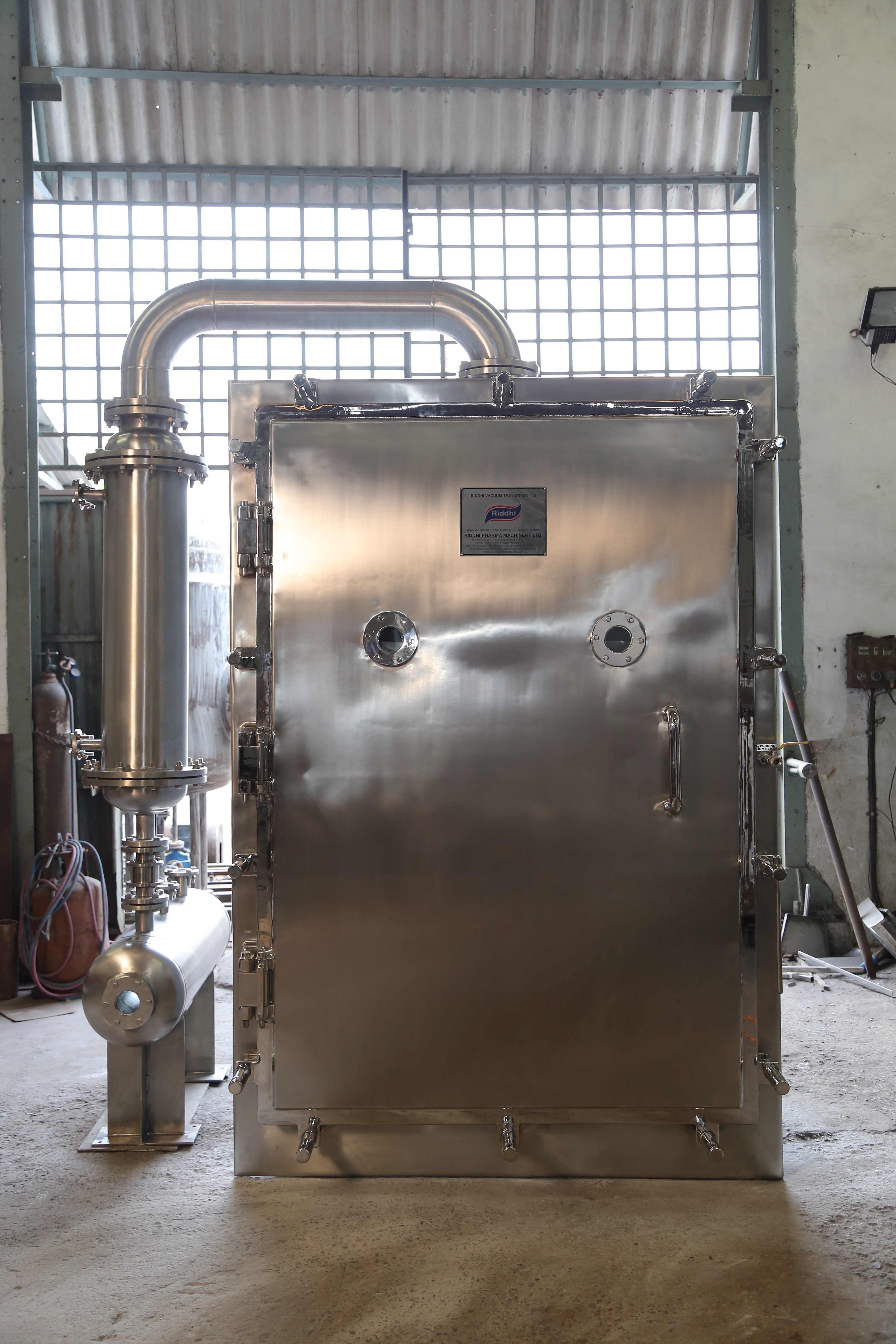

VACUUM TRAY DRYER

Technical Specification

Vtd 48

Main Chamber Overall Size

1350 Mm W X 2150 Mm H X 1000 Mm D

Chamber

6 Mm Thk Ss 316 Q Fully Welded Reinforced With Ss 304 Q 50 Mm X50 Mm Square Bar & 50 X 100 Mm M.s Chanel Support Stiffner All Around the Body.outside Chamber Mounting on 250x125mm Beam 02nos Leg.

Heating Shelves

Fully Welded Hollow Pads in Ss 316 Q With 4 Mm Top & 3 Mm Bottom With Inside 20 X 20mm Ss 304 Sq.bar Zigzag Welding for Hot Water Cirulation.

Shelve Sizes

1650 Mm D X 830 Mm W X 28 Mm

No. Of Shelves & Heat Trasfer Area of Heating Shelves

16 + 01 No Dummy Shelves

Outside Insulation

Ss 304 14 Swg Thk Sheet Covering

Skirting

Ss 304 5mm Thk Plate X250mm W.

Vacuum Piping

Ss 316

Finish Internal

All Internal Grit 240 Mirror Finish

Finish External

 180 Grit Dull Finishing From All Over Outside.

Temp & Vacuum Gauge

Reputed Make Ss Dial Type Vacuum Gauge  01nos and Temp.gauge 02nos.

Gasket

Silicon  Food Grade  Size16x16mm

Door

Ss 316 8 Mm Thk. Plate Reinforced With 50 X 50 Mm Ss 304 Square Bar.with 2nos 150nb View Glass & the Inside Surface of the Door Flange in Grooved to Accommodate of Silicon Gasket Out Side 3 Mm Thk Ss 304 Sheet for Insulation Covering.

Door Hinges

Ss 304 Heavy Duty Hinges 02 Nos.

Locking Arrangement

Ss 304 Square Thrade With Round Pipe Type Nut.

C.c. Distance Between Shelves

110 Mm Minimum

Annular Space Between Shelves

80 Mm

Hot Water Header Supply

Ss 304 Sch 40 Pipe Fitted at Outside of Dryer

Operating Temperature

90  Deg

Design Temperature

110 Deg

Vaccum Drop

50 Mm  24 Hrs.

Design Pressure

Full Vacuum

Flange Connection

All Nozzale as Per Asa150 Raised Face Hot Water Inlet  Outlet 25nb, Vacuum Vent 150nb, N2 Purging 15nb, View Glass 150nb, Temp Sensor Etc 15nb.

Vaccum Gauge    Make

Micro Make

Vacuum Braking

Ss 316 Needle Valve Type

Condenser H.t Area

4 M 2
