Ribbon Mixer

Product Description

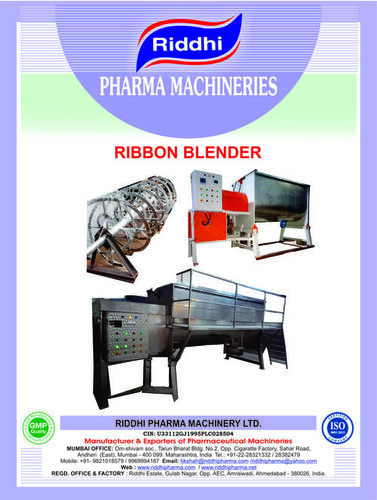

RIBBON BLENDER cum ROASTER

Ribbon Blenders light duty blenders mainly used for easytomix powder components that are preprocessed like dried granules presieved powders etc It is a lowshear mixer and is mostly used for solidsolid mixing Solidliquid mixing can also be achieved when a high shearing force is not desired It occupies less headroom space for largevolume mixing unlike Double Cone Blenders V Blenders etc

Salient Features

• Available in two shapes
• Ufor Low to Medium Volume capacitySingle shaft
• W for Large to Mega volume capacity double shaft
• Batch size based on 70 of Blender Volume
• Bearing mounted on lanterns out of the Mixing zone to avoid contamination
• Feeding through a charging port mounted on the top of the blender
• Reduced Material handling due to side discharge facility of processed materials
• Preferred for lubrication of granules in large quantities
• Dry Blending of capsule formulation
• Mixing of Cosmetic powders

Capacity available 125 L to 5000 liters

We are leading manufacturers Suppliers  Exporters of Spice Roasters Spice Roaster is fabricated in a Ushaped sturdy body having a top cover centrally located and a bottom discharge valve and with the centrally mounted longitudinal shaft on which Spirals and ribbons are mounted Our specially designed spiral ribbons give the best blending results due to three dimensional actions

Thus every particle comes equally in contact with the heating zone and is roasted equally Spice Roasters are available with options as per customer requirements having Full Stainless Steel OR with contact parts in Stainless Steel and Noncontact parts in Mild Steel with Enamel  Epoxy paint

In conventional Spice Roasters the heating is achieved through the Jacket filled with specialpurpose heating oil which is heated through Electrically operated oil immersed heaters The heating temperature is controlled through a digital temperature controller which can be achieved up to 250 Deg C

The production of conventional electrically heated roasters has been affected due to recent power crises the cost of generator power with a high electrical load is defiantly not affordable Considering these problems we had recently developed the Roasters with LPG Gas heating arrangements

It has all the advantages which an electrically operated roaster has such as Auto electronic operating ignition temperature controlling system etc The heating temperature can be achieved easily in a very short time up to 350 Deg C which is achieved with hot generated air circulated through a specially designed heating jacket

Advantages of Spice Roasters

• Improves the consistent quality Auto Temperature setting Homogenous mixing No carbonization of Material as the minimum gap between shell  ribbons
• improves Hygienic conditions Minimum hand contamination avoids dusting of Material and all contact parts made of Stainless Steel
• Reduction in Labour cost
• Increases Production
